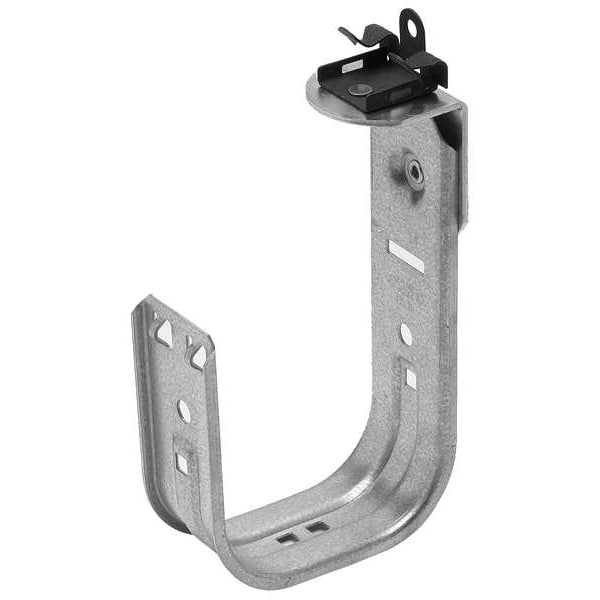

J-Hook, 1/8-1/4In, Under, 4In Max Cap
| Item | J-Hook |
|---|---|
| Mounting Location | Beam |
| Color | Silver |
| Max. Load Capacity | 30 lb |
| Max. Cable Capacity | 4 in |
| Material | Galvanized Steel |
| Type | Cable to beam fastener |
| Mounting Type | Hammer-On 1/8 to 1/4" Flange, Underneath Mount |
| Description/Special Features | Beam Clamp Assembly |
| Standards | cUL, UL |
| Mounting | 360 Degrees Horizontal Rotation |
| Attachment Style | Hammer On |
| Includes Locking Latch | Yes |
| Flange Thickness | 1/8 in to 1/4 in |
| Max. Bundle Dia. | 4 in |
| Number of J-hooks | 1 |
| Finish | Pre-galvanized |
| Mounting dimensions - min | 1/8" |
| Special features | Beam mount |
| Certifications | CUL, UL, listed |
| Product Height | 8.33 in |
| Product Length/Depth | 4.265 in |
| Hook size | 4 in |
| Mounting dimensions - max | 1/4 in |
| Load capacity | 30 lb |
| Product Width | 2-1/4 in |
| PRODUCT NAME | Eaton B-Line series cable hook to beam fastener |
| PRODUCT WEIGHT | 0.94 lb |
| Package Quantity | 1 |
