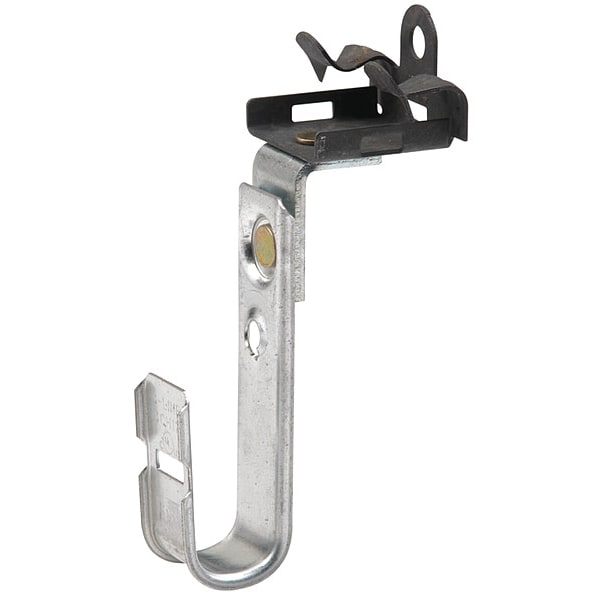

J-Hook, 3/4" Size, 30 lb Max. Load Capacity, Silver
| Item | J-Hook |
|---|---|
| Mounting Location | Beam |
| Size | 3/4" |
| Color | Silver |
| Max. Load Capacity | 30 lb |
| Max. Cable Capacity | 3/4 in |
| Material | Galvanized Steel |
| Type | Cable to beam fastener |
| Mounting Type | Hammer-On, 1/8 to 1/4" Flange, Underneath Mount |
| Standards | cUL, UL |
| Description/Special Features | Beam Clamp Assembly |
| Mounting | 360 Degrees Horizontal Rotation |
| Flange Thickness | 1/8 in to 1/4 in |
| Includes Locking Latch | Yes |
| Max. Bundle Dia. | 3/4 in |
| Attachment Style | Hammer On |
| Height | 3.29 in |
| Width | 0.87 in |
| Mounting dimensions - min | 1/8" |
| Certifications | CUL, UL, listed |
| Special features | Beam mount |
| Product Length/Depth | 1.832 in |
| Mounting dimensions - max | 1/4 in |
| Product Height | 5.159 in |
| Hook size | 3/4 in |
| Load capacity | 30 lb |
| Number of J-hooks | 1 |
| Product Width | 1-3/4 in |
| Depth | 1.02 in |
| Marketing Information | Eaton B-Line series datacomm and low voltage support fasteners, Cable to beam fastener, Beam mount, 1/8" Min flange thickness, 1/4" Max flange thickness, 3/4" Hook, 1 J-hook, Load capacity of 30 lbs, Steel |
| Product Material | Galvanized Steel |
| Product Name | BCH12-U-2-4 Cable Hook |
| Cable Manager Type | Hook |
| Product Type | Cable Tying |
| Package Contents | BCH12-U-2-4 Cable Hook,Cable Retainer Clips |
| PRODUCT WEIGHT | 0.155 lb |
| Package Quantity | 1 |
