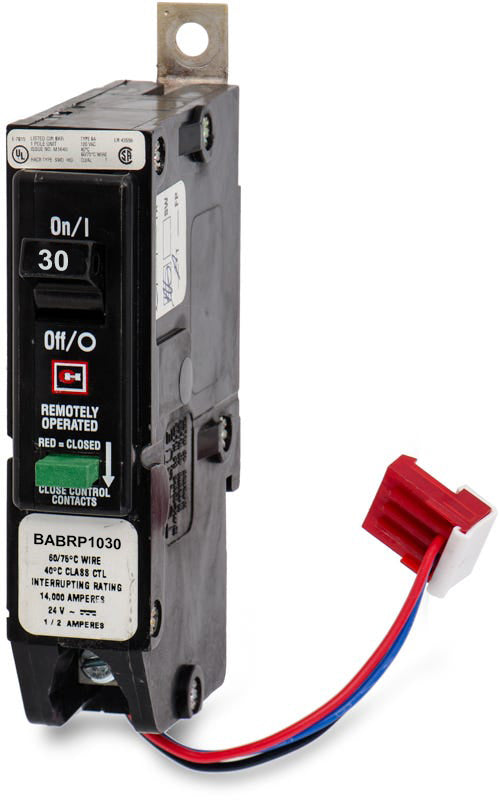

The Eaton BABRP1030 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The BABRP1030 has a panel mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | BABRP |
| Amperage | 30 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Panel |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | BAB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Mpn | BABRP1030 |
| Upc | 782116062324 |
