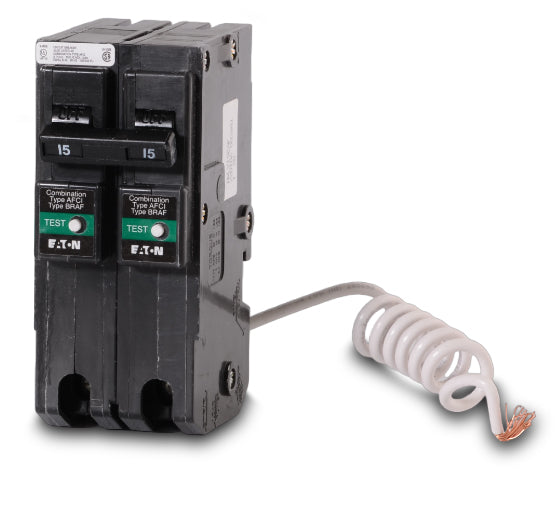

The Eaton BRL215CAF is a 2 Pole molded case combination Arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The BRL215CAF has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | BR |
| Amperage | 15 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | BR |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | #14 to 4 AWG CU/AL |
| For Use With | Type BR Loadcenters |
| Temperature Rating | 60 to 75°C |
| Circuit Breaker Type | CAFCI |
| Mpn | BRL215CAF |
| Upc | 786685495156 |
