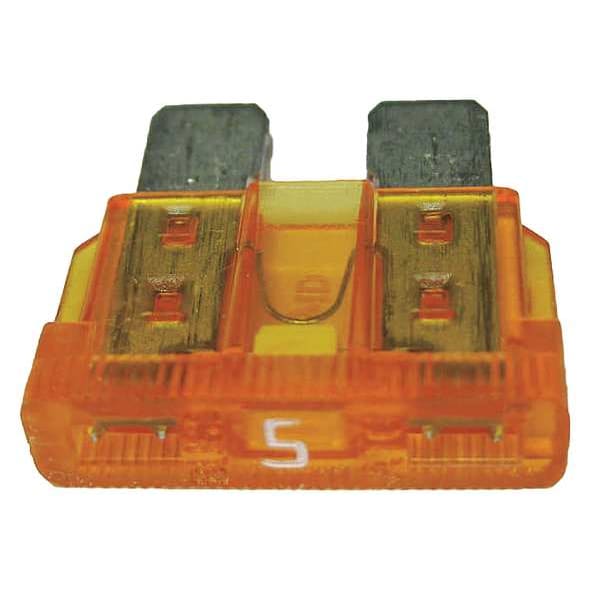

Automotive Fuse, ATC-ID Series, 5A, 32V DC, Indicating, 2 PK
| CAD Available | Yes |
|---|---|
| Item | Automotive Fuse |
| Series | ATC-ID |
| Speed | Fast-Acting |
| Amps | 5A |
| DC Voltage Rating | 32V DC |
| AC Voltage Rating | Not Rated |
| Visual Indication | Indicating |
| Color Code | Tan |
| Interrupt Rating | 1kA at 32V DC |
| Body Style | Blade |
| Body Material | Polycarbonate |

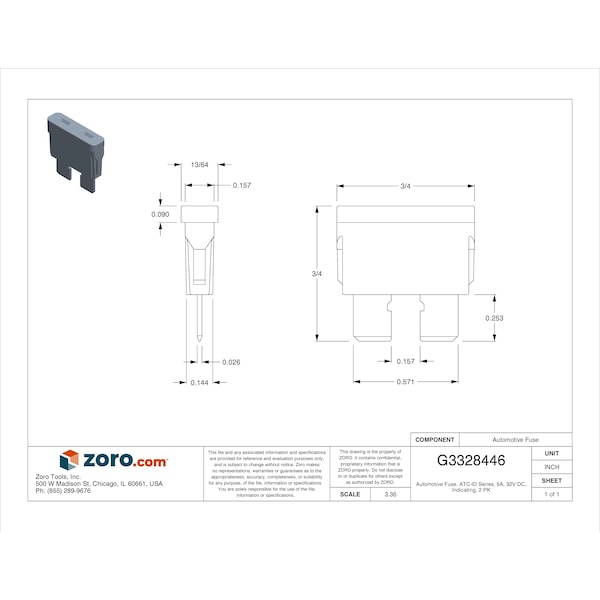

| Length | 3/4 in |
| Width | 3/4 in |
| Depth | 13/64 in |
| Equivalent Brand and Series | Bussmann ATC-ID |
| Equivalent Series | ATC-ID |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Standards | UL Recognized Guide JFHR2, File E56412 |
| Functionally Equal To | Littelfuse 257, ATO, Mersen/Ferraz Shawmut AF |
| Compatible Fuse Block Series | 15600, ATC, BP, HHC, HHD, HHF, HHG |
| Package Quantity | 2 |
