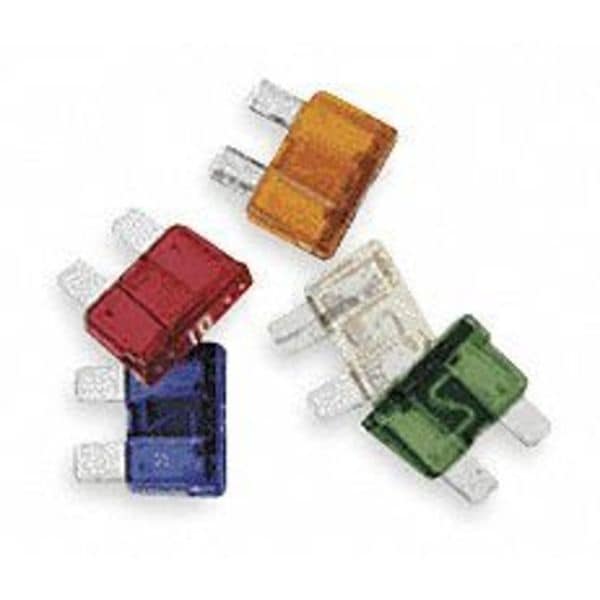

Automotive Fuse, ATC Series, 5A, 32V DC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Item | Automotive Fuse |
| Series | ATC |
| Speed | Fast-Acting |
| Amps | 5A |
| DC Voltage Rating | 32V DC |
| AC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Color Code | Tan |
| Interrupt Rating | 1kA at 32V DC |
| Body Style | Blade |
| Body Material | Polycarbonate |

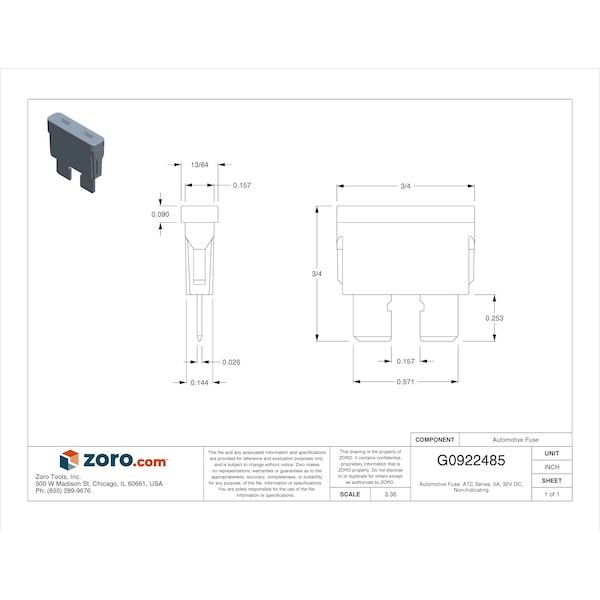

| Length | 3/4 in |
| Width | 3/4 in |
| Depth | 13/64 in |
| Equivalent Brand and Series | Bussmann ATC-ID, Littelfuse 257, Mersen AF |
| Equivalent Series | 257, AF, ATC |
| Fits Fuse Block Style | Non-Rejection |
| Functionally Equal To | Littelfuse 257, ATO, Mersen/Ferraz Shawmut AF |
| Element | Single |
| Standards | UL Recognized Guide JFHR2, File E56412 |
| Compatible Fuse Block Series | 15600, ATC, BP, HHC, HHD, HHF, HHG |
| Connection Material | Zinc |
| Weight | 0.03 lb |
| Package Quantity | 1 |
