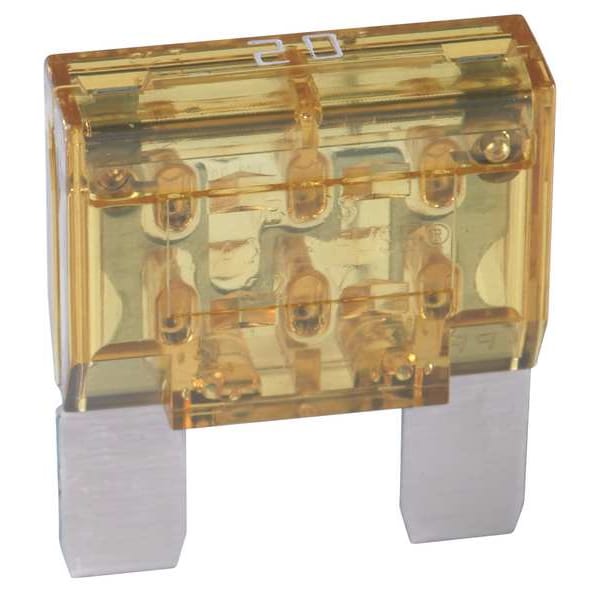

Automotive Fuse, MAX Series, 20A, 32V DC, Non-Indicating
| Item | Automotive Fuse |
|---|---|
| Series | MAX |
| Speed | Fast-Acting |
| Amps | 20A |
| DC Voltage Rating | 32V DC |
| AC Voltage Rating | Not Rated |
| Visual Indication | Non-Indicating |
| Color Code | Yellow |
| Interrupt Rating | 1kA at 32V DC |
| Body Style | Blade |
| Body Material | Plastic |
| Length | 1-23/64 in |
| Width | 1-7/32 in |
| Depth | 23/64 in |
| Equivalent Brand and Series | Bussmann MAX, Littelfuse 299, Mersen AF3 |
| Equivalent Series | 299, AF3, MAX |
| Fits Fuse Block Style | Non-Rejection |
| Functionally Equal To | Littelfuse MAX, Mersen/Ferraz Shawmut AF-3 |
| Element | Single |
| Standards | RoHS 2002/95/EC |
| Compatible Fuse Block Series | HHX, MAX |
| Connection Material | Zinc |
| Weight | 0.25 lb |
| Package Quantity | 1 |
