Automotive Fuse, SFE Series, 14A, 32V DC, Indicating, 5 PK
| CAD Available | Yes |
|---|---|
| Item | Automotive Fuse |
| Series | SFE |
| Speed | Fast-Acting |
| Amps | 14A |
| DC Voltage Rating | 32V DC |
| AC Voltage Rating | 32V AC |
| Visual Indication | Indicating |
| Color Code | Clear |
| Interrupt Rating | 10kA at 32V AC, 10kA at 32V DC |
| Body Style | Cylindrical |
| Body Material | Glass |

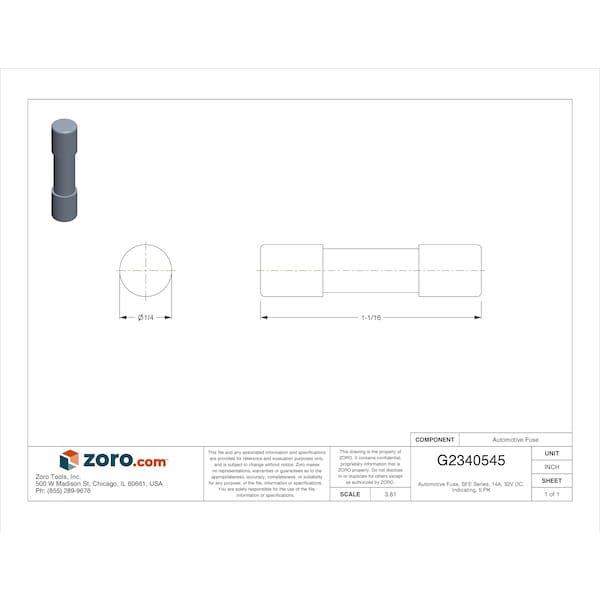

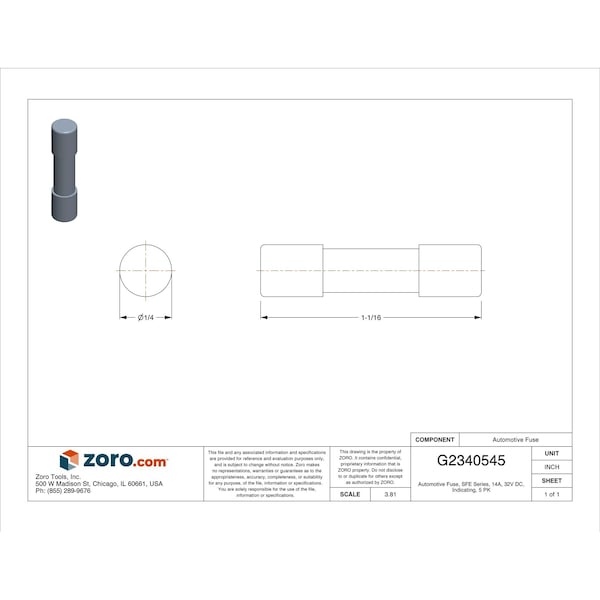

| Length | 1-1/16 in |
| Width | 1/4 in |
| Depth | 1/4 in |
| Equivalent Brand and Series | Bussmann SFE, Littelfuse 307, Mersen FSFE |
| Equivalent Series | 307, FSFE, SFE |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Functionally Equal To | Littelfuse 307 |
| Standards | SAE Specifications |
| Compatible Fuse Block Series | HHK |
| Weight | 0.004 lb |
| Package Quantity | 5 |
