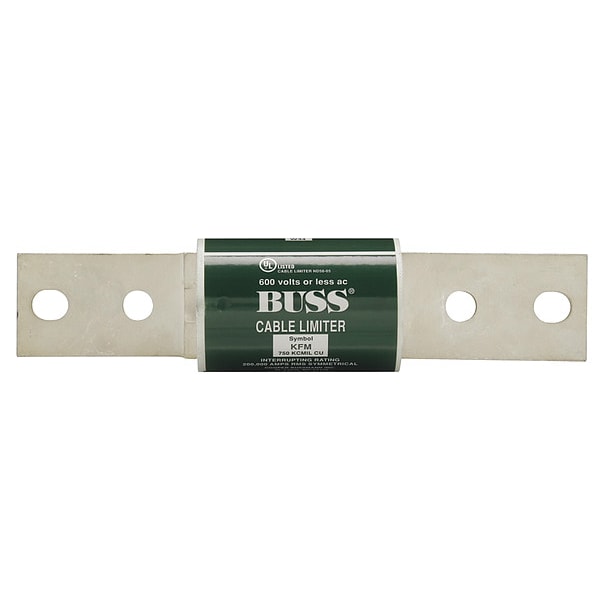

Cable Limiter, Class K, KFM, 600VAC
| Item | Cable Limiter |
|---|---|
| Voltage | 600V AC |
| Max. Wire Size | 750 kcmil |
| Diameter | 2-1/2 in |
| Voltage Rating | 600VAC |
| Class | K |
| Series | KFM |
| Interrupt Rating | 200 kAIC at 600 Vac |
| Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Element | Single |
| Functionally Equal To | Littelfuse LFCL, Mersen/Ferraz Shawmut CP |
| Body Style | Bolt-On |
| Rejection / Nonrejection | Nonrejection |
| Cable Size | 750 kcmil |
| Standards | UL Listed |
| Length | 10-3/4 in |
| Body Material | Melamine |
| AC Voltage Rating | 600V AC |
| Visual Indication | Nonindicating |
| DC Voltage Rating | Not Rated |
| Equivalent Brand and Series | Bussmann KFM, Littelfuse LFCL, Mersen CP |
| Fuse Size | 10-3/4 in L x 2-1/2 in dia |
| Connector Type | Center Bolt-to-Offset Bolt |
| Fits Fuse Block Style | Nonrejection |
| Equivalent Series | CP, KFM, LFCL |
| Length (Straight Wireway) | 10-3/4 in |
| Type | Cable limiter |
| Material Type | Cable: Copper or Aluminum |
| Product Weight | 4.25 lb |
| Fuse Indicator | Non Indicating |
| Connection | Center bolt end x offset bolted end |
| Product Height | 1-3/4 in |
| Product Length/Depth | 2-1/2 in |
| Package Quantity | 1 |
