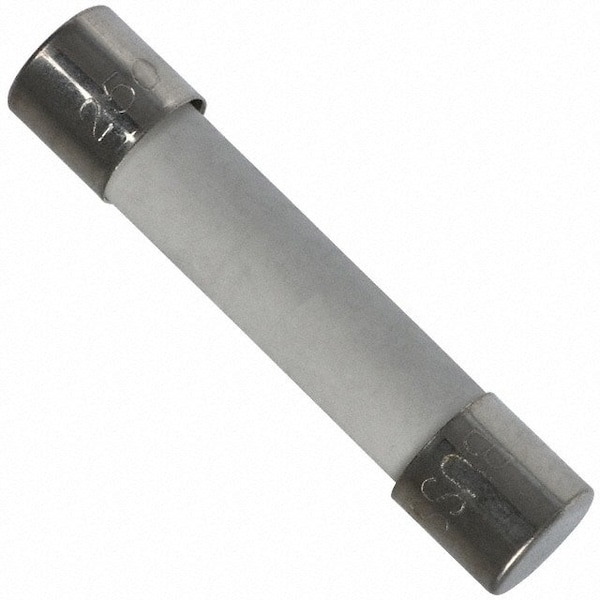

Ceramic Fuse, ABC Series, Fast-Acting, 15A, 250V AC, 10kA at 125V AC/DC, 750 A at 250V AC
| Series | ABC |
|---|---|
| Speed | Fast-Acting |
| Amps | 15A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V AC/DC,750 A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 6 mm |
| Length | 1/4 in |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann ABC, Littelfuse 314, Mersen GAB |
| Compatible Fuse Block Series | 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000 |
| DC Voltage Rating | 125V DC |
| Item | Ceramic Fuse |
| Weight | 0.007 lb |
| Package Quantity | 1 |
