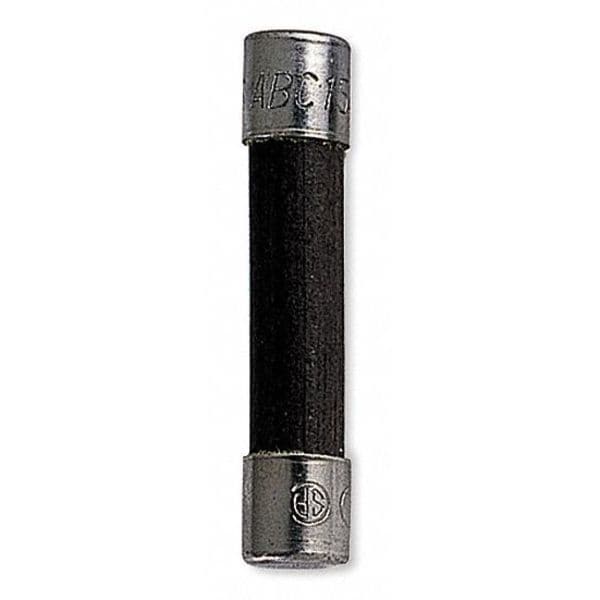

Ceramic Fuse, ABC Series, Fast-Acting, 3/8A, 250V AC, 5 PK
| Series | ABC |
|---|---|
| Speed | Fast-Acting |
| Amps | 3/8A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V AC, 10kA at 125V DC, 35A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1-1/4 in |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann ABC, Littelfuse 314, Mersen GAB |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| DC Voltage Rating | 125V DC |
| Item | Ceramic Fuse |
| Rejection / Nonrejection | Nonrejection |
| Length (Straight Wireway) | 1-1/4 in |
| Standards | CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Equivalent Series | 314, ABC, GAB |
| Element | Single |
| Fuse Holder Code | G |
| Fuse Speed | Fast Acting |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Package Quantity | 5 |
