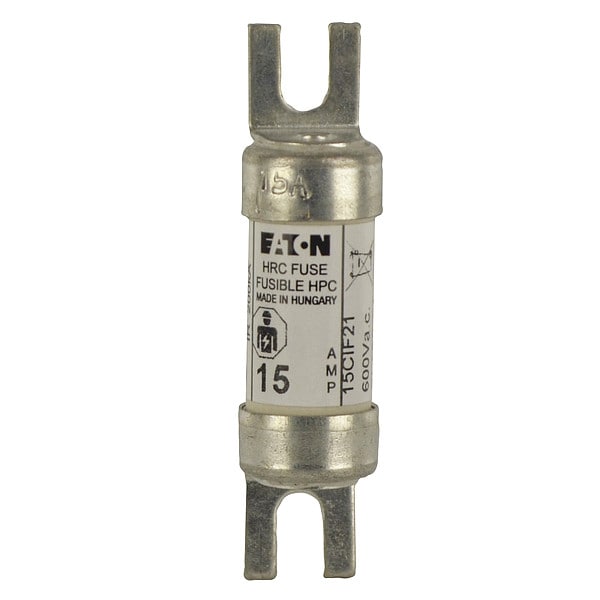

Ceramic Fuse, CIF21 Series, Time-Delay, 15A, 600V AC, 200kA at 250V DC, 200kA at 600V AC
| Series | CIF21 |
|---|---|
| Speed | Time-Delay |
| Amps | 15A |
| AC Voltage Rating | 600V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 250V DC, 200kA at 600V AC |
| Body Style | Bolt-On |
| Diameter | 14 mm |
| Length | 55 mm |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann CIF21 |
| DC Voltage Rating | 250V DC |
| Item | Ceramic Fuse |
| Standards | CE, CSA C22.2, No. 106-M92 |
| Element | Dual |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Class | Not Rated |
| Width | Not Applicable |
| Depth | Not Applicable |
| Equivalent Series | CIF21 |
| Weight | 0.03 lb |
| Package Quantity | 1 |
