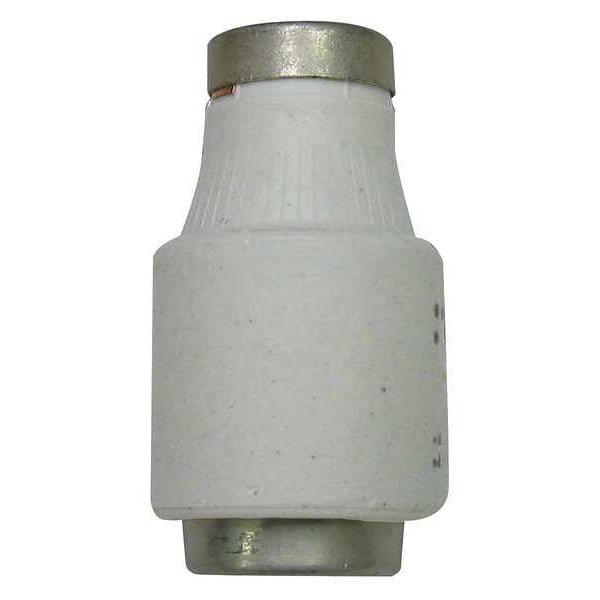

Ceramic Fuse, D33 Series, Time-Delay, 50A, 500V AC, 50kA at 500V AC
| Series | D33 |
|---|---|
| Speed | Time-Delay |
| Amps | 50A |
| AC Voltage Rating | 500V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA at 500V AC |
| Body Style | Cylindrical |
| Diameter | 1-1/16 in |
| Length | 2 in |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann D33, Siemens 5SB4 |
| DC Voltage Rating | Not Rated |
| Item | Ceramic Fuse |
| IEC Operating Fuse Class | gG, gL |
| Class D Fuse Size | DIII |
| Cap Diameter | 45/64 in |
| Equivalent Series | 5SB4, D33 |
| Standards | DIN 49534, IEC 60269 |
| Class | D |
| Element | Dual |
| Weight | 51 g |
| Color Code | White |
| Package Quantity | 1 |
