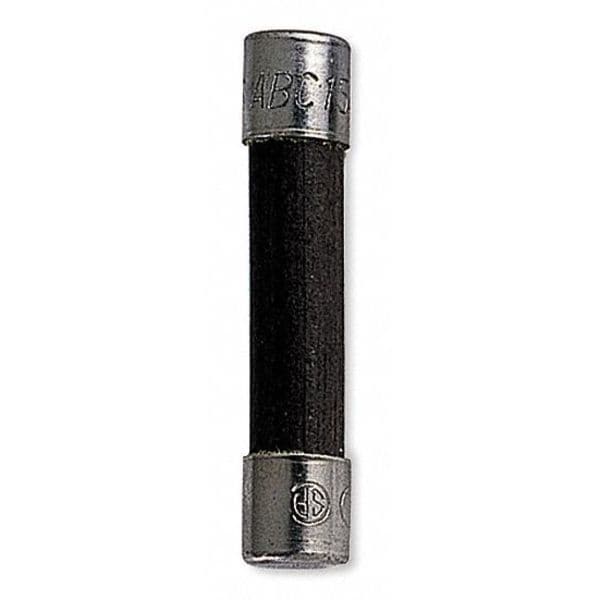

Ceramic Fuse, MDA Series, Time-Delay, 3.20A, 250V AC, 100A at 250V AC, 5 PK
| Series | MDA |
|---|---|
| Speed | Time-Delay |
| Amps | 3.20A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1-1/4 in |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann MDA, Littelfuse 326, Mersen GSA |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| DC Voltage Rating | Not Rated |
| Item | Ceramic Fuse |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | G |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Equivalent Series | 326, GSA, MDA |
| Package Quantity | 5 |
