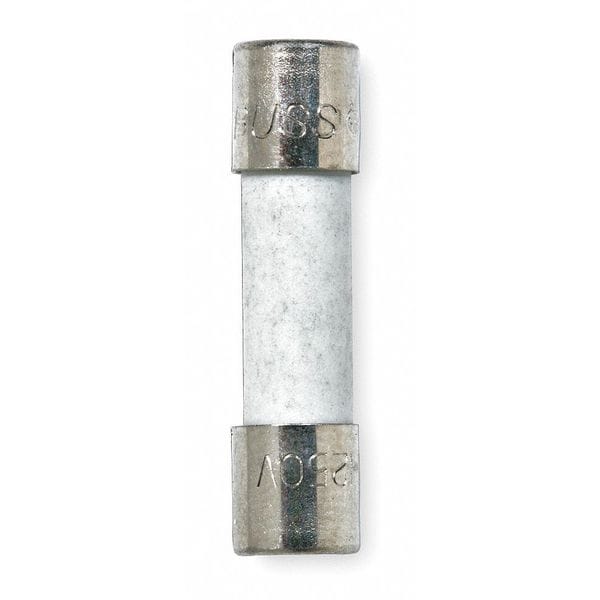

Ceramic Fuse, S501 Series, Fast-Acting, 100mA, 250V AC, 1.5kA at 250V AC, 5 PK
| Series | S501 |
|---|---|
| Speed | Fast-Acting |
| Amps | 100mA |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 1.5kA at 250V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann GDA, Bussmann S501, Littelfuse 216, Mersen GSD |
| Compatible Fuse Block Series | HTB |
| DC Voltage Rating | Not Rated |
| Item | Ceramic Fuse |
| Rejection / Nonrejection | Nonrejection |
| Length (Straight Wireway) | 20 mm |
| Weight | 0.005 lb |
| Equivalent Series | 216, GDA, GSD, S501 |
| Element | Single |
| Standards | CE, CSA Certification, UL Guide JDYX2 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Fuse Holder Code | E |
| Package Quantity | 5 |
