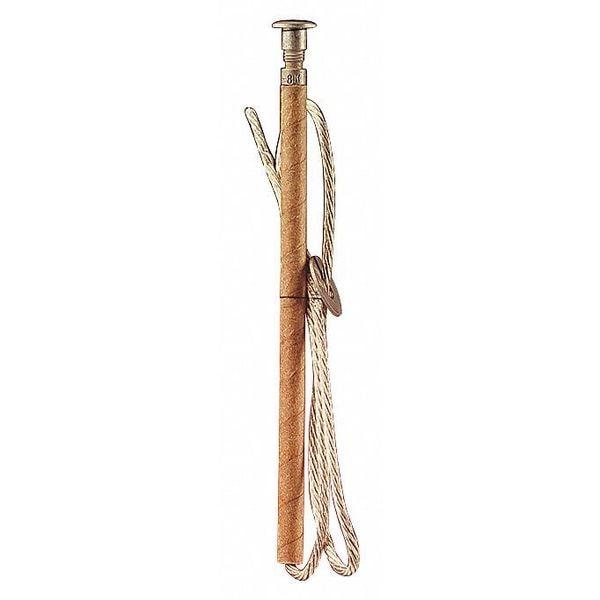

Cutout Link, FL3 Series, 80A, Fast-Acting, 27,000V AC, Pin, K Link Type, Removable
| Item | Cutout Link |
|---|---|
| Series | FL3 |
| Amps | 80A |
| Speed | Fast-Acting |
| AC Voltage Rating | 27,000V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Pin |
| Link Type | K |
| Button-Head Type | Removable |
| Diameter | 3/4 in |
| Length | 23 in |
| Equivalent Brand and Series | Bussmann FL3 |
| Equivalent Series | FL3 |
| Standards | EEI-NEMA |
| Element Material | Tin |
| Fuse Amps | 80 A |
| For Use With | Medium Voltage Fused Cutouts Rated to 27kV that Require Removable Button Links |
| Element | Single |
| Product Width | 3/4 in |
| Product Length/Depth | 3/4 in |
| Product Height | 23 in |
| Certifications | IEEE Certified |
| Application | Medium voltage fused cutouts |
| Type | Fast-acting, EEI-NEMA |
| Amperage Rating | 80 A |
| Package Quantity | 1 |
