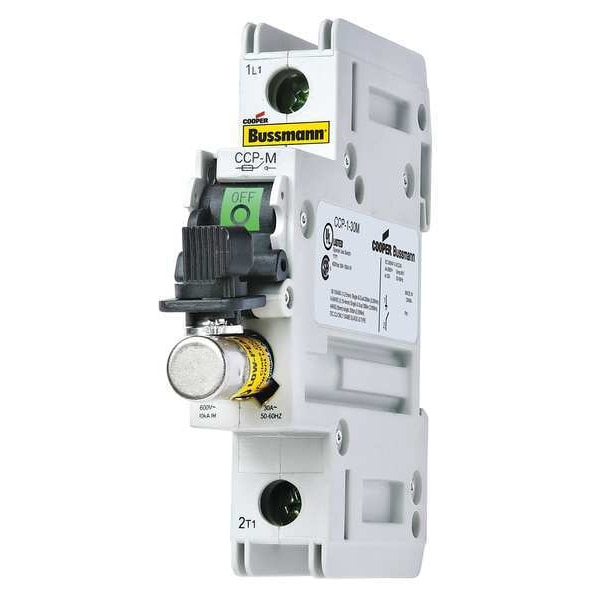

Disconnect Switches, 0 to 30A Amp Range, 240V AC Volt Rating, 1 Poles, Box Lug, Midget Fuse Type
| Item | Disconnect Switches |
|---|---|
| Amp Range | 0 to 30A |
| Voltage Rating | 240V AC |
| Number of Poles | 1 |
| Connector Type | Box Lug |
| Fits Fuse Type | Midget |
| For Use With | 35mm |
| Min. Wire Size | 18 AWG |
| Max. Wire Size | 4 AWG |
| Depth | 3.7 in |
| Height | 3.1 in |
| Amps | 30 |
| Width | 0.7 in |
| Pieces per Foot | 17 |
| Interrupt Rating | 10 kA @ 240 VAC |
| Series | CCP2 |
| Length | 3.65 in |
| Fuse UL Class | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Mounting Style | DIN Rail |
| Visual Indication | Indicating |
| Wire Range | 18 to 4 AWG |
| Fuse Block Design | Finger-Safe |
| Fuse Block or Fuse Holder Type | UL98 fusible disconnect |
| Product Type | Finger-Safe Fuse Block with Disconnect Switch |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Weight | .22 LB |
| Max. Amps | 30 |
| Fits Fuse Block Style | Rejection |
| Max. Voltage | 240V AC |
| Package Quantity | 1 |
