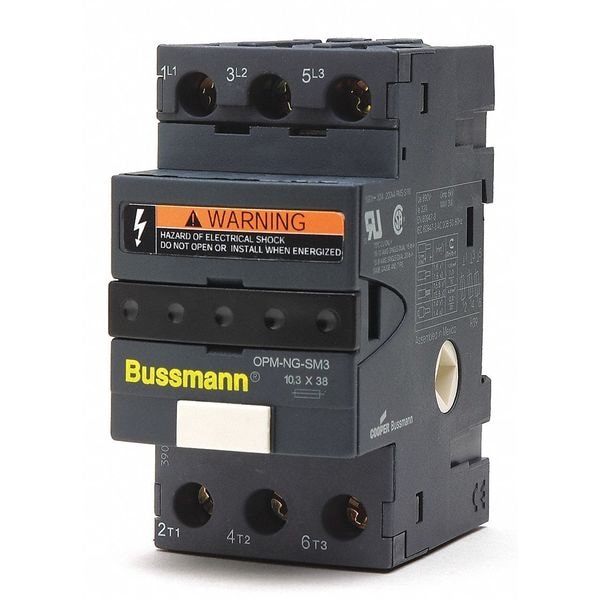

Finger Safe Fuse Block, 3 Poles, 0 to 30A Amp Range, 600V AC Volt Rating
| Item | Finger Safe Fuse Block |
|---|---|
| Series | OPM-NG |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC |
| Connector Type | Screw |
| Mounting Style | DIN-Rail, Panel |
| Visual Indication | Non-Indicating |
| Wire Range | 10 AWG to 8 AWG, 18 AWG to 12 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Width | 1.8 in |
| Length | 3.3 in |
| Height | 4.2 in |
| Fuse Type | Midget |
| For Fuse Series | FNM, FNQ, KTK |
| Features | Touch Safe |
| Standards | CE, CSA Certified, UL Listed |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Midget |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Weight | 0.354 lb |
| Short Circuit Current (KA) | 200 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
