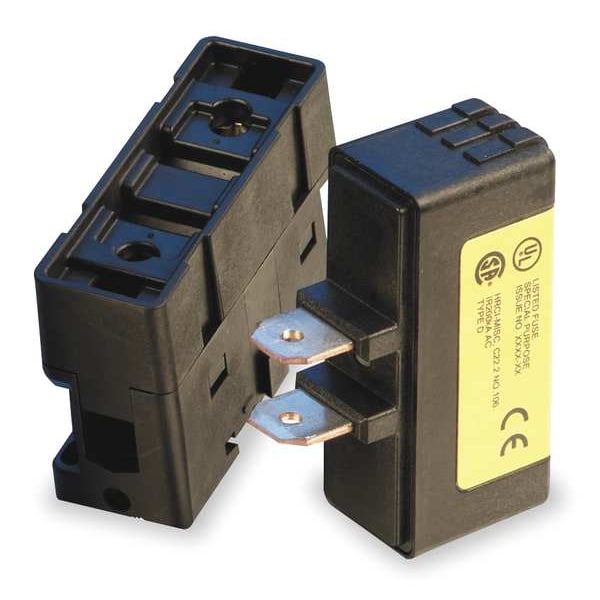

Finger Safe Fuse Block, J UL Class, 600V AC/300V DC Volt Rating, 1 Poles, Box Lug
| Item | Finger Safe Fuse Block |
|---|---|
| UL Class | J |
| Series | TCFH |
| Number of Poles | 1 |
| Amp Range | 1 to 100A |
| Voltage Rating | 600V AC/300V DC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail, Panel |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Finger-Safe |
| Body Material | PBT |
| Fuse Holder Code | T, CC, J, RK |
| Length | 2.91 in |
| For Fuse Series | FCF, TCF |
| Fuse Type | Industrial |
| Height | 2 in |
| Width | 1 in |
| Standards | CSA Certified, UL Listed |
| For Fuse Size | 3 in L x 1 in W x 1-1/4 in dia |
| Fits Fuse Type | Class J |
| Wire Range | 18 AWG to 1 AWG |
| Weight | 0.25 lb |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
