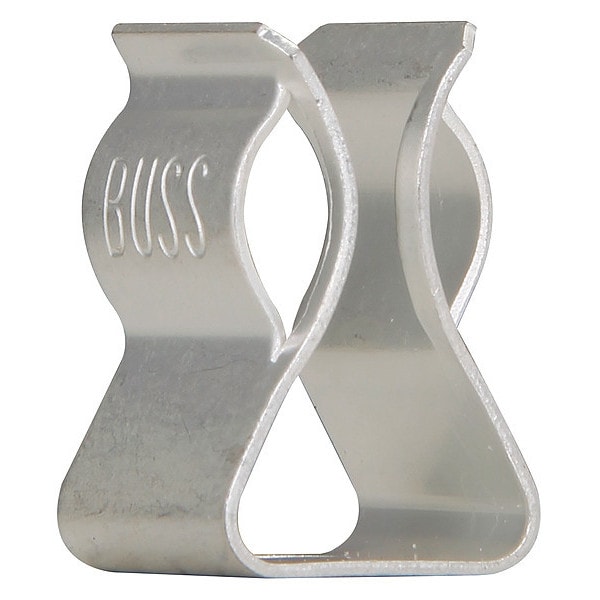

Fuse Clip, CC Fuse Class, 30A Max. Amps, 600V AC Max. Volts, 0 to 30A Amp Range
| Item | Fuse Clip |
|---|---|
| For Fuse Class | CC |
| Max. Amps | 30 |
| Max. Voltage | 600V AC |
| Amp Range | 0 to 30A |
| Mounting Style | Screw |
| Fits Fuse Diameter | 13/32 in |
| Finish | Tin-Plated |
| Mounting Hole Dia. | 0.196 in |
| Standards | Not Specified |
| Material | Copper |
| For Use With | Ferrule-Type Fuses |
| Voltage Rating | 600V AC |
| Width | 0.46 in |
| Body Material | Bronze |
| Series | 5000 |
| Length | 0.71 in |
| Height | 0.387 in |
| Visual Indication | Non-Indicating |
| Used with | Used with 13/32" diameter fuses |
| Package Quantity | 1 |
