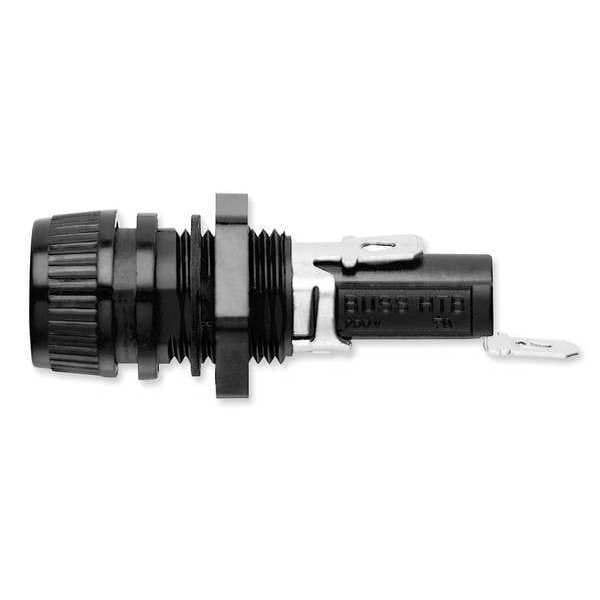

Fuse Holder, 0 to 16A Amp Range, 250V AC/DC Volt Rating, 1 Poles, Quick Connect
| Item | Fuse Holder |
|---|---|
| Series | HTB |
| Number of Poles | 1 |
| Amp Range | 0 to 16A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Quick Connect |
| Mounting Style | Panel |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Not Applicable |
| Body Material | Thermoplastic |
| Height | 0.78 in |
| Panel Thickness | 19/64" |
| Fuse Type | Ceramic, Glass |
| Fuse UL Class | Not Class Rated |
| Length | 0.19 in |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | E |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Fuse Series | GDA, GDB, GDC, GMA, GMC, GMD, S500, S501, S505, S506 |
| Width | 0.19 in |
| For Fuse Size | 20 mm L x 5 mm dia |
| Fits Fuse Type | Glass, Ceramic |
| Fuse Cap Style | Knob |
| Diameter | 5 mm |
| Max. Amps | 16 |
| Fits Fuse Block Style | Non-Rejection |
| For Fuse Class | Not Class Rated |
| Max. Voltage | 250V AC/DC |
| Mounting Hole Dia. | 29/64 in |
| Fuse Block or Holder DC Voltage Rating | 32VDC |
| Fuse Block or Holder AC Voltage Rating | 250VAC |
| Package Quantity | 1 |
