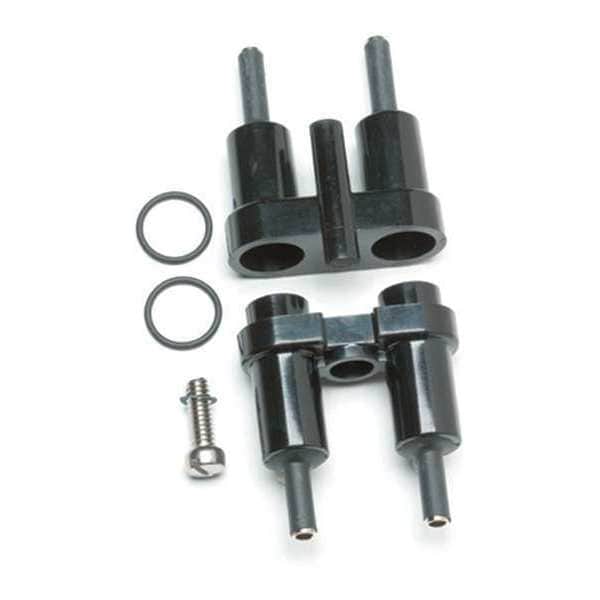

Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Crimp
| Item | Fuse Holder |
|---|---|
| Series | HET |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Crimp |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Non-Breakaway |
| Body Material | Thermoplastic |
| Width | 1 in |
| Length | 7.12 in |
| Fuse UL Class | CC |
| Features | Double Pole, Non Breakaway |
| Height | 1 in |
| For Fuse Series | BAF, FNM, FNQ, KTK |
| Standards | CE, CSA, UL Listed |
| Fuse Type | Midget |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Use With | Used with Class CC and 13/32" x 1 1/2" fuses |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Midget |
| Weight | .15 LB |
| For Fuse Class | CC |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 600V AC/DC |
| Max. Amps | 30 |
| Wire Range | 12 AWG to 8 AWG, 12 AWG |
| Fuse Block or Holder AC Voltage Rating | Not Rated |
| Package Quantity | 1 |
