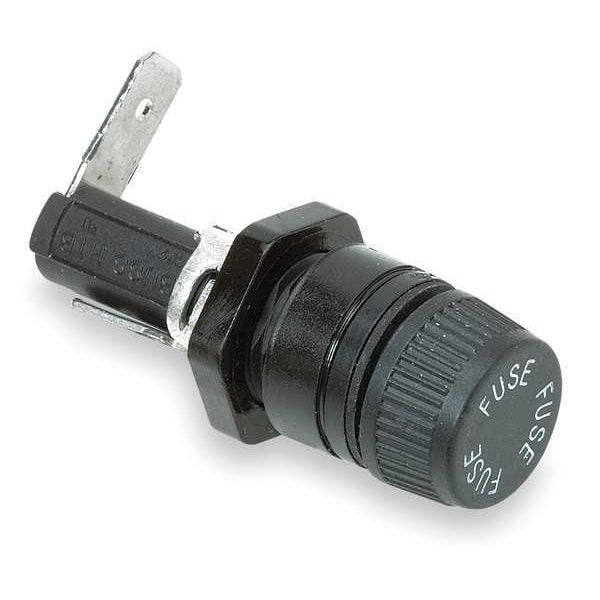

Fuse Holder, 1 Poles, 0 to 20A Amp Range, 250V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | HTB |
| Number of Poles | 1 |
| Amp Range | 0 to 20A |
| Voltage Rating | 250V AC/DC |
| Connector Type | Quick Connect |
| Mounting Style | Panel |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Not Applicable |
| Body Material | Thermoplastic |
| Width | 1/4 in |
| Length | 1/4 in |
| Height | 1-1/4 in |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Fuse UL Class | Not Class Rated |
| For Fuse Series | ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH |
| Panel Thickness | 1/8" |
| Fuse Holder Code | G |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Type | Ceramic, Glass |
| For Fuse Size | 1-1/4 in L x 1/4 in dia |
| Diameter | 1/4 in |
| Fuse Cap Style | Screw Knob |
| Fits Fuse Type | Glass, Ceramic |
| Max. Amps | 20 |
| Max. Voltage | 250V AC/DC |
| Mounting Hole Dia. | 29/64 in |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder AC Voltage Rating | 250VAC |
| Fuse Block or Holder DC Voltage Rating | 125VDC |
| Package Quantity | 1 |
