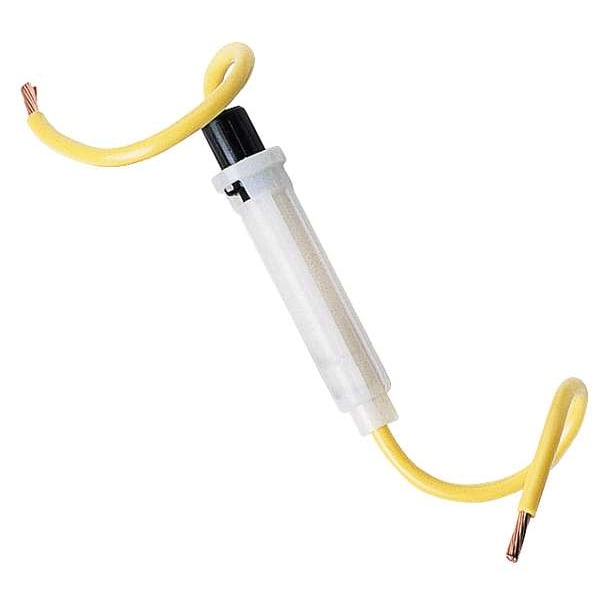

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 32V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | HHN |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 32V AC/DC |
| Fits Fuse Type | Glass, Ceramic |
| Connector Type | Wire Leads |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 12 AWG |
| Fuse Block Design | Non-Breakaway |
| Body Material | Nylon |
| Width | 1/2 in |
| Length | 1-3/4 in |
| Height | 1/2 in |
| Fuse UL Class | Not Class Rated |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Fuse Series | ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH |
| Fuse Type | Automotive |
| For Fuse Size | 1-1/4 in L x 1/4 in dia |
| Fits Fuse Block Style | Non-Rejection |
| For Fuse Class | Not Class Rated |
| Max. Amps | 30 |
| Max. Voltage | 32V AC/32V DC |
| Fuse Block or Holder AC Voltage Rating | 32VAC |
| Fuse Block or Holder DC Voltage Rating | 32VDC |
| Package Quantity | 1 |
