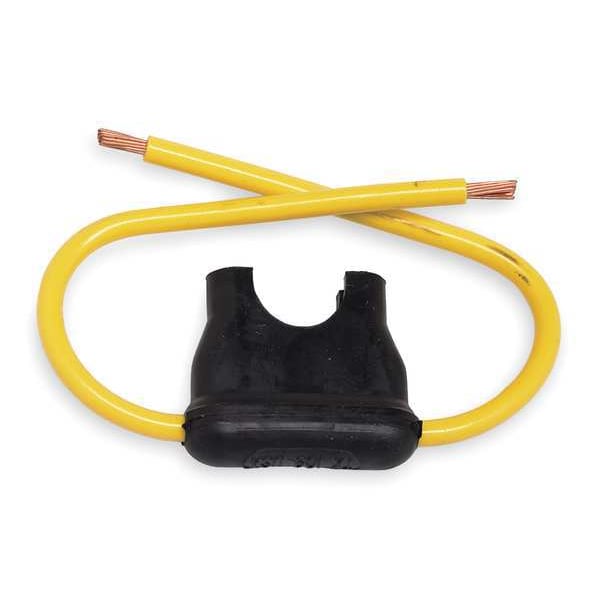

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 32V DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | HHD |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 32V DC |
| Fits Fuse Type | Automotive |
| Connector Type | Wire Leads |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 12 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 1 in |
| Length | 9-3/4 in |
| Height | 0.41 in |
| For Fuse Series | ATC |
| Fuse Type | Automotive |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Fuse UL Class | Not Class Rated |
| For Fuse Size | 3/4 in L x 3/4 in W x 13/64 in dia |
| For Use With | ATC blade type fuse |
| Weight | 0.3 lb |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 32 V DC |
| Max. Amps | 30 |
| For Fuse Class | Not Class Rated |
| Fuse Block or Holder AC Voltage Rating | Not Rated |
| Package Quantity | 1 |
