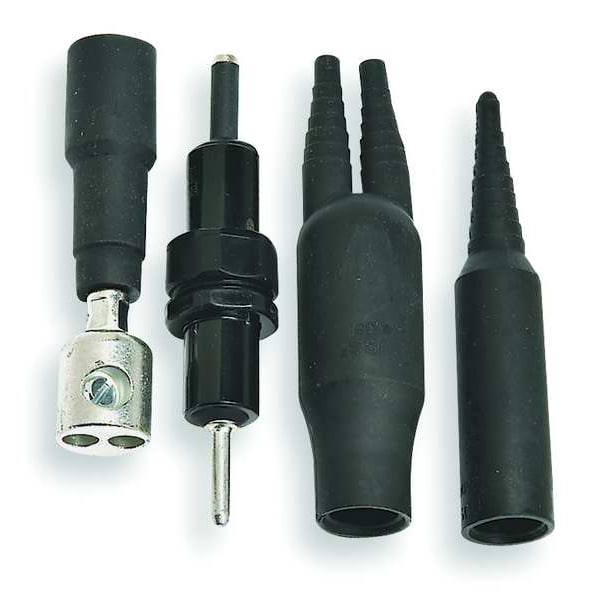

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | HEB |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw, Crimp |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 16 AWG to 12 AWG, 16 AWG to 8 AWG, 12 AWG to 2 AWG |
| Fuse Block Design | Breakaway with Boots |
| Body Material | Plastic |
| Width | 0.4 in |
| Length | 0.4 in |
| Height | 1-1/2 in |
| Fuse Holder Code | D |
| Fuse Type | Midget |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Standards | CE, CSA, UL-R |
| For Fuse Series | BAF, FNM, FNQ, KLM, KTK |
| Fuse UL Class | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fits Fuse Type | Midget |
| Weight | 3.1812 lb |
| Short Circuit Current (KA) | 200 kA |
| Max. Amps | 30 |
| Max. Voltage | 600V AC/600V DC |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Package Quantity | 1 |
