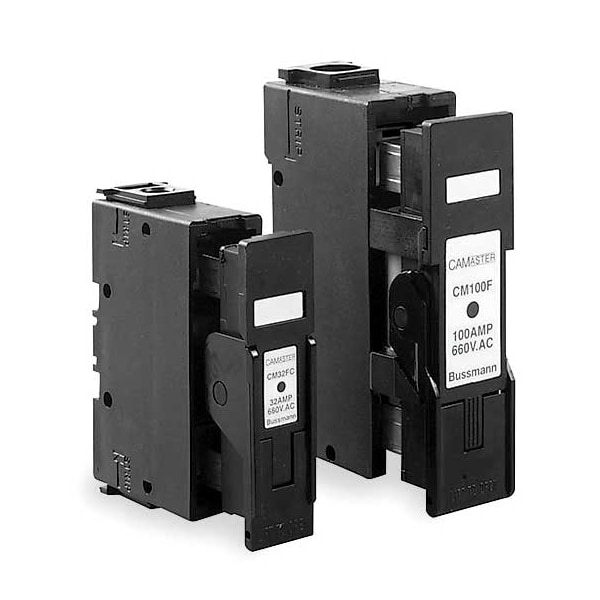

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 690V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | HRC |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 690V AC/DC |
| Connector Type | Screw |
| Mounting Style | DIN-Rail, Screw |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Finger-Safe |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Fuse Series | HRCI-CA |
| Height | 2.36 in |
| Fuse UL Class | Not Class Rated |
| Length | 3.69 in |
| Width | 1 in |
| Fuse Type | British, IEC |
| For Fuse Size | 2-5/32 in L x 35/64 in dia |
| Features | Unique Cable Termination |
| Wire Range | 2 AWG |
| Fits Fuse Type | British, IEC |
| Product Type | Finger-Safe Fuse Block |
| Weight | .28292 LB |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Max. Amps | 30 |
| For Fuse Class | Not Class Rated |
| Max. Voltage | 690V AC/DC |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder AC Voltage Rating | 690VAC |
| Fuse Block or Holder DC Voltage Rating | 250VDC |
| Package Quantity | 1 |
