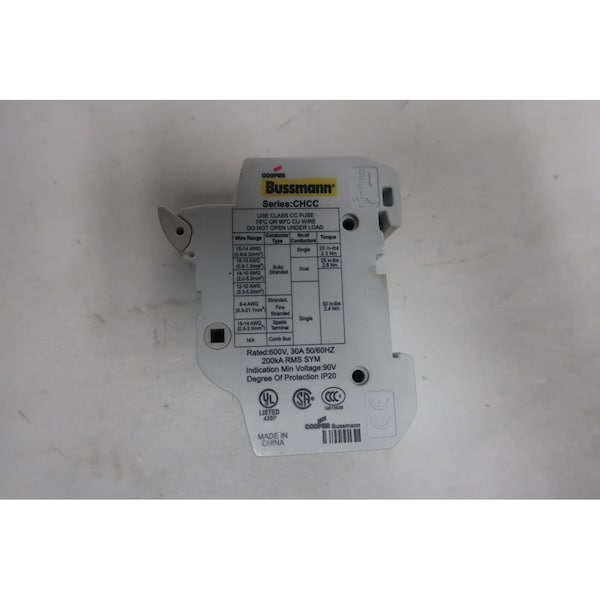

Fuse Holder, 2 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | CHCC |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Clamp, Spade Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 18 AWG to 4 AWG |
| Body Material | Thermoplastic |
| Width | 1.38 in |
| Length | 2.44 in |
| Height | 2.91 in |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fuse UL Class | CC |
| Max. Amps | 30 |
| For Fuse Class | CC |
| Max. Voltage | 600V AC/DC |
| Package Quantity | 1 |
