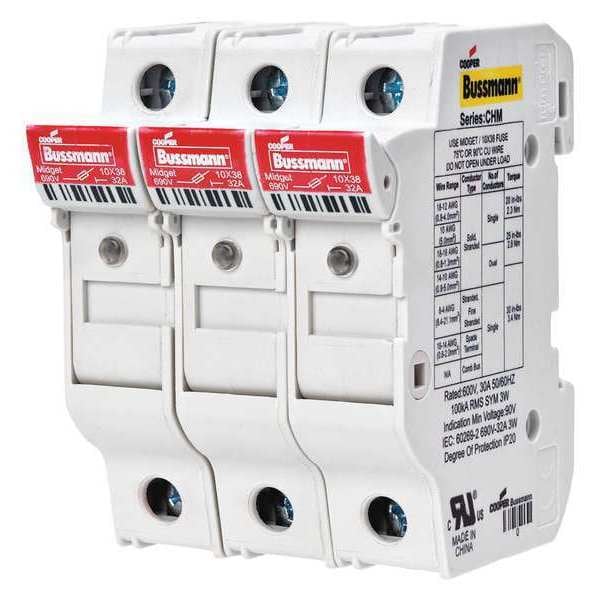

Fuse Holder, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | CHM |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Midget |
| Connector Type | Clamp, Spade Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 18 AWG to 4 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Width | 3.28 in |
| Length | 2.91 in |
| Height | 2.43 in |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Standards | CE, CSA Certified, UL Listed |
| Fuse Type | Midget |
| For Fuse Series | AGU, BAF, BAN, BBS, C10G, C10M, FNM, FNQ, FWA, FWC, FWP, KLM, KTK |
| Features | Finger Safe |
| Fuse UL Class | Midget |
| For Use With | For use with CHM 10 mm X 38 mm fuse and Midget fuse |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Product Type | Finger-Safe Fuse Block |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Weight | 0.221 kg |
| Short Circuit Current (KA) | 200 kA |
| Max. Operating Temp. | 120 deg C |
| Max. Amps | 30 |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 600V AC/DC |
| Fuse Block or Holder DC Voltage Rating | Not Rated |
| Package Quantity | 1 |
