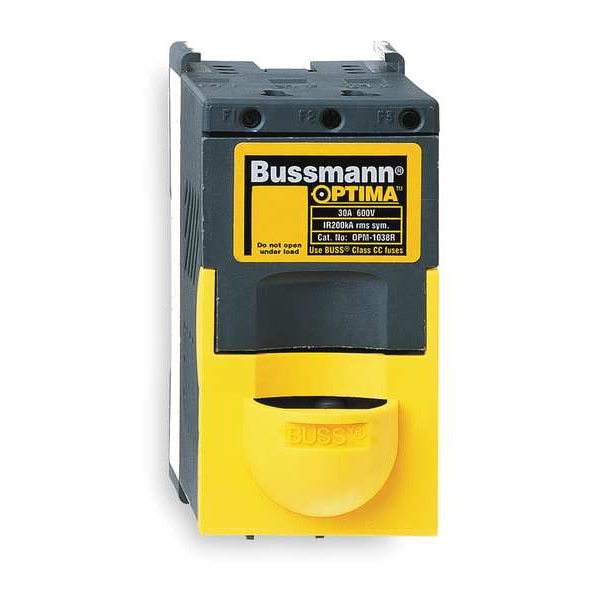

Fuse Holder, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | OPM-1038 |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Fits Fuse Type | Midget |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail, Panel |
| Visual Indication | Indicating |
| Wire Range | 18 AWG to 8 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Thermoplastic |
| Width | 3.6 in |
| Length | 3.61 in |
| Height | 3-3/4 in |
| Fuse Holder Code | D |
| Fuse UL Class | Midget |
| Fuse Block or Fuse Holder Type | Finger Safe Fuse Block |
| Fuse Type | Midget |
| For Fuse Series | KTK, FNM, FNQ, C10M, C10G |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Standards | CSA Certified |
| Product Type | Finger-Safe Fuse Block |
| Short Circuit Current (KA) | 200 kA |
| Weight | 0.55 lb |
| Includes Auxiliary Contact | No |
| Includes Communication Feature | No |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 600V AC/DC |
| Max. Amps | 30 |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Package Quantity | 1 |
