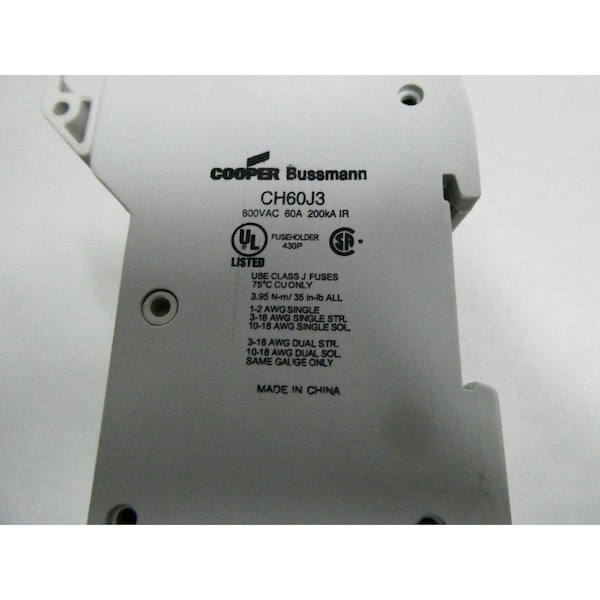

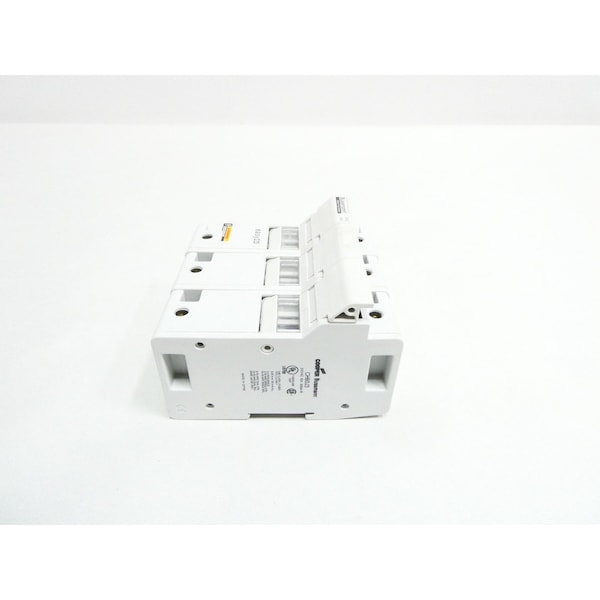

Fuse Holder, 3 Poles, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | CH |
| Number of Poles | 3 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 18 AWG to 3 AWG, 18 AWG to 1 AWG |
| Body Material | Thermoplastic |
| Width | 4.72 in |
| Length | 4.88 in |
| Height | 3.31 in |
| Fuse UL Class | J |
| For Fuse Size | 2-3/8 in L x 1-1/16 in dia |
| Max. Voltage | 600V AC/DC |
| For Fuse Class | J |
| Max. Amps | 30 |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
