Glass Fuse, AGA Series, Fast-Acting, 3A, 125V AC, 200A at 125V AC, 5 PK

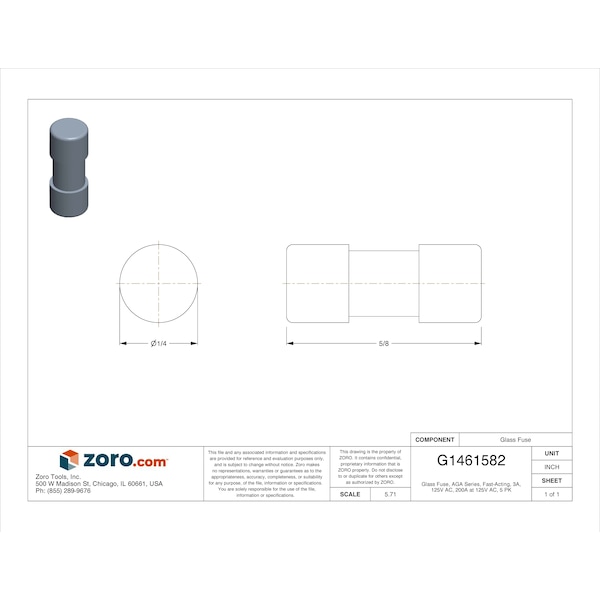

| CAD Available | Yes |
|---|---|
| Series | AGA |
| Speed | Fast-Acting |
| Amps | 3A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200A at 125V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 5/8 in |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann AGA, Littelfuse 301/AMP, Littelfuse AGA |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| Element | Single |
| Standards | CE, UL Listed, Guide JDYX, File E19180 |
| Equivalent Series | 301/AMP, AGA |
| Weight | 0.006 lb |
| Package Quantity | 5 |
