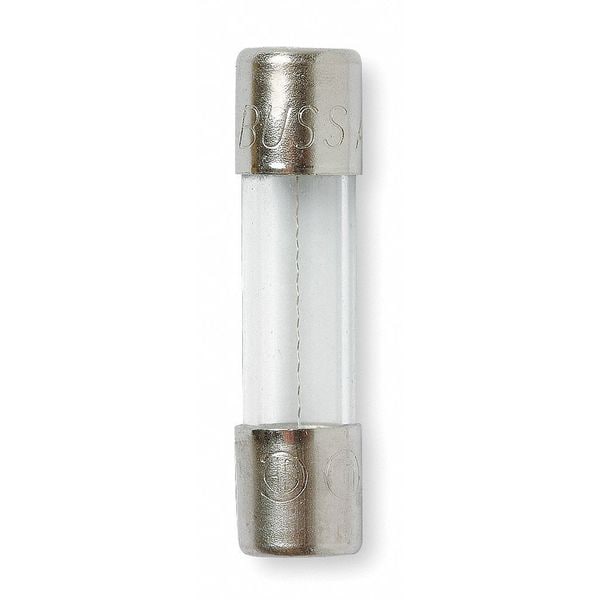

Glass Fuse, AGX Series, Fast-Acting, 2.50A, 125V AC, 100A at 125V AC, 5 PK
| Series | AGX |
|---|---|
| Speed | Fast-Acting |
| Amps | 2.50A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100A at 125V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1 in |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann AGX, Littelfuse 361, Littelfuse 362, Mersen GGX |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| Fits Fuse Block Style | Rejection |
| DC Voltage Rating | Not Rated |
| Item | Glass Fuse |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| In Line Fuseholder | Y |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Fuse Holder Code | Y |
| Equivalent Series | 361, 362, AGX, GGX |
| Package Quantity | 5 |
