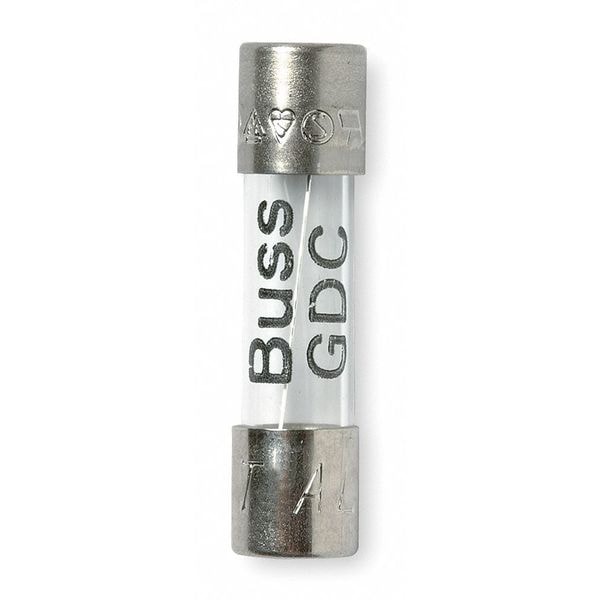

Glass Fuse, GDC Series, Time-Delay, 2A, 250V AC, 35A at 250V AC, 5 PK
| Series | GDC |
|---|---|
| Speed | Time-Delay |
| Amps | 2A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 35A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GDC, Bussmann S506, Littelfuse 218, Mersen GDG |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| In Line Fuseholder | E |
| Fuse Holder Code | E |
| Standards | CE, cURus Guide JDYX2/JDYX8, IMQ, MITI/JET File JET1641-31003-1005, UL |
| Element | Single |
| Functionally Equal To | Littelfuse 218, Mersen/Ferraz Shawmut GDG |
| Equivalent Series | 218, GDC, GDG, S506 |
| Connection Type | Ferrule End x Ferrule End |
| Weight | 0.002 lb |
| Package Quantity | 5 |
