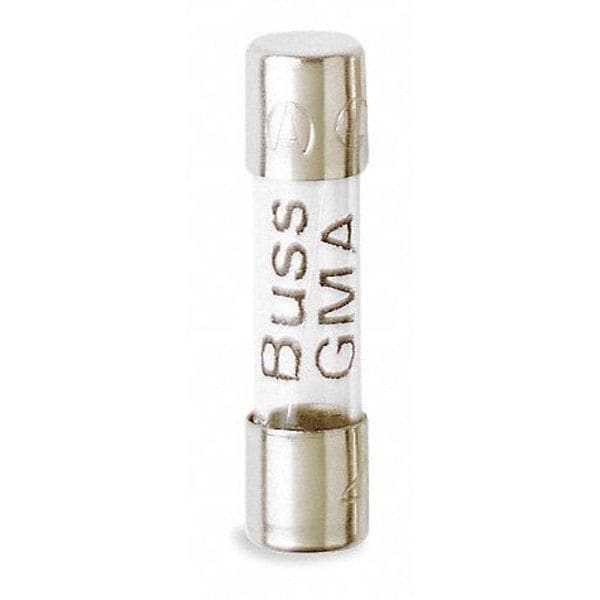

Glass Fuse, GMA Series, Fast-Acting, 10A, 125V AC, 200A at 125V AC, 5 PK
| CAD Available | Yes |
|---|---|
| Series | GMA |
| Speed | Fast-Acting |
| Amps | 10A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200A at 125V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GMA, Littelfuse 235, Mersen GGM |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| Fuse Holder Code | E |
| Element | Single |
| In Line Fuseholder | E |
| Standards | CE, PSE Approval, UL 248-14 Guide JDYX2 File E19180 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Equivalent Series | 235, GGM, GMA |
| Weight | 0.002 lb |
| Package Quantity | 5 |
