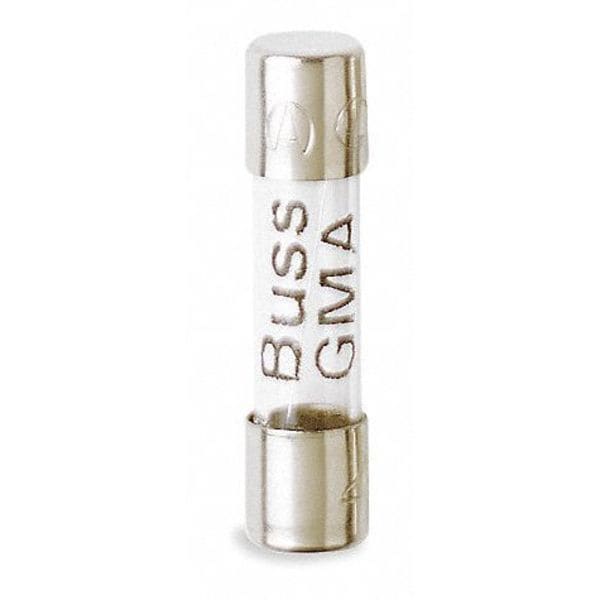

Glass Fuse, GMA Series, Fast-Acting, 1.25A, 250V AC, 100A at 250V AC, 10kA at 125V AC, 5 PK
| CAD Available | Yes |
|---|---|
| Series | GMA |
| Speed | Fast-Acting |
| Amps | 1.25A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100A at 250V AC, 10kA at 125V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GMA, Littelfuse 235, Mersen GGM |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| In Line Fuseholder | E |
| Fuse Holder Code | E |
| Standards | CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval |
| Equivalent Series | 235, GGM, GMA |
| Weight | 0.005 lb |
| Package Quantity | 5 |
