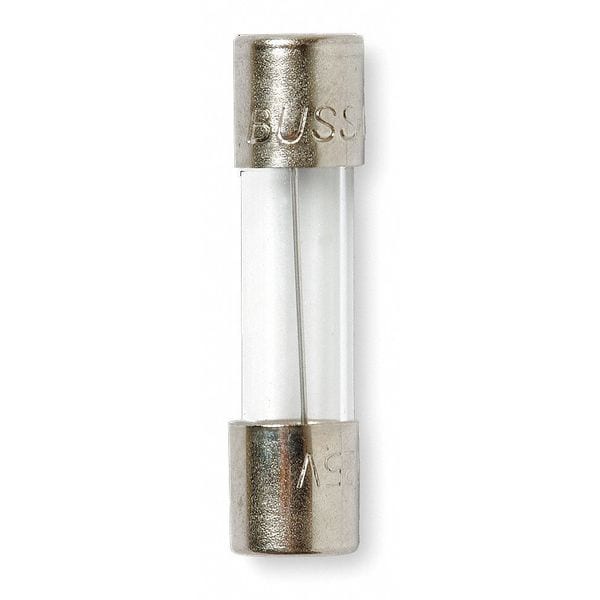

Glass Fuse, GMC Series, Time-Delay, 1.60A, 250V AC, 100kA at 250V AC, 10kkA at 125V AC, 5 PK
| Series | GMC |
|---|---|
| Speed | Time-Delay |
| Amps | 1.60A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 250V AC, 10kkA at 125V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GMC, Littelfuse 239, Mersen GSC |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| Functionally Equal To | Littelfuse 239, Mersen/Ferraz Shawmut GSC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | E |
| In Line Fuseholder | E |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Equivalent Series | 239, GMC, GSC |
| Package Quantity | 5 |
