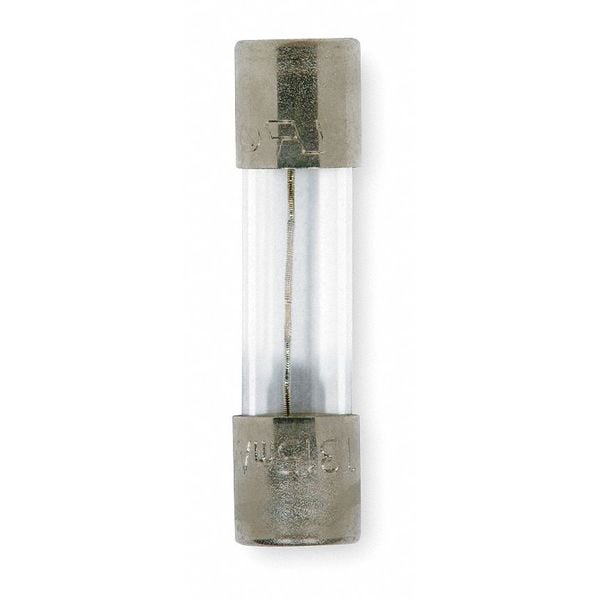

Glass Fuse, S506 Series, Time-Delay, 5A, 250V AC, 50A at 250V AC, 5 PK
| Series | S506 |
|---|---|
| Speed | Time-Delay |
| Amps | 5A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 5 mm |
| Length | 20 mm |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann GDC, Bussmann S506, Littelfuse 218, Mersen GDG |
| Compatible Fuse Block Series | HTB |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 32 V DC |
| Item | Glass Fuse |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Holder Code | E |
| Standards | cURus Recognition Guide JDYX2/JDYX8, IMQ, MITI/JET1641-31003-1005 |
| Functionally Equal To | Bussmann GDC, Littelfuse 218, Mersen/Ferraz Shawmut GDG |
| In Line Fuseholder | E |
| Equivalent Series | 218, GDC, GDG, S506 |
| Weight | 0.002 lb |
| Connection Type | Ferrule End x Ferrule End |
| Package Quantity | 5 |
