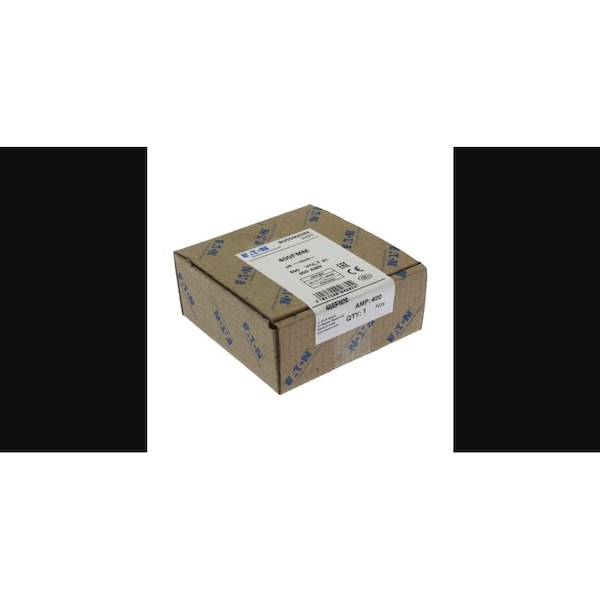

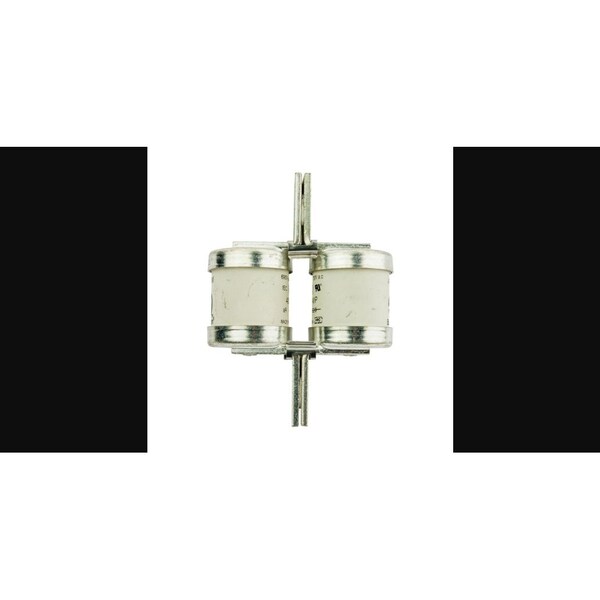

Inline Fuse, FMM Series, 400A, Fast-Acting, 690V AC, Dual Barrel
| Item |
Inline Fuse |
| Series |
FMM |
| Amps |
400A |
| Speed |
Fast-Acting |
| AC Voltage Rating |
690V AC |
| DC Voltage Rating |
350V DC |
| Body Style |
Dual Barrel |
| Visual Indication |
Non-Indicating |
| Interrupt Rating |
200kA |
| Diameter |
83 mm |
| Length |
112 mm |
| Width |
39 MM |
| Height |
82 MM |
| Application |
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Amperage Rating |
400 A |
| Mounting |
Stud |
| Amperage Rating Numeric |
400 A |
| Watt losses |
85 |
| Connection |
Blade end X blade end |
| Breaking Capacity |
200 KA |
| Clearing (I2T) |
40000 |
| Pre arc (I2T) |
10,000 |
| Type |
fuse |
| Fuse shape |
centre-bolted tags (dual barrel) |
| Package Quantity |
1 |
