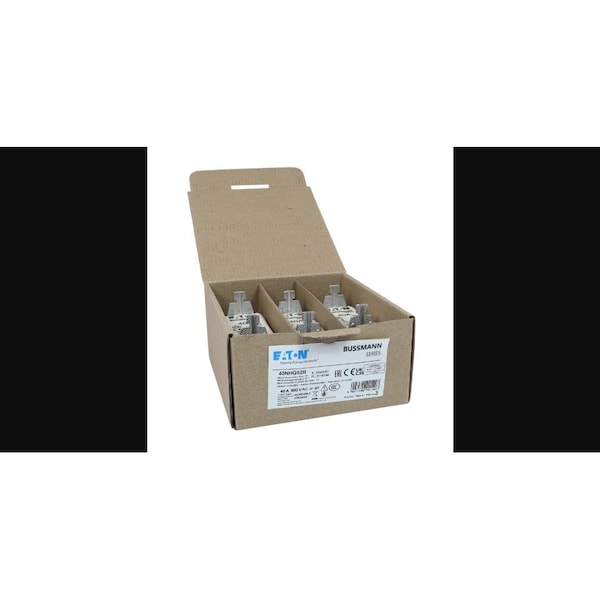

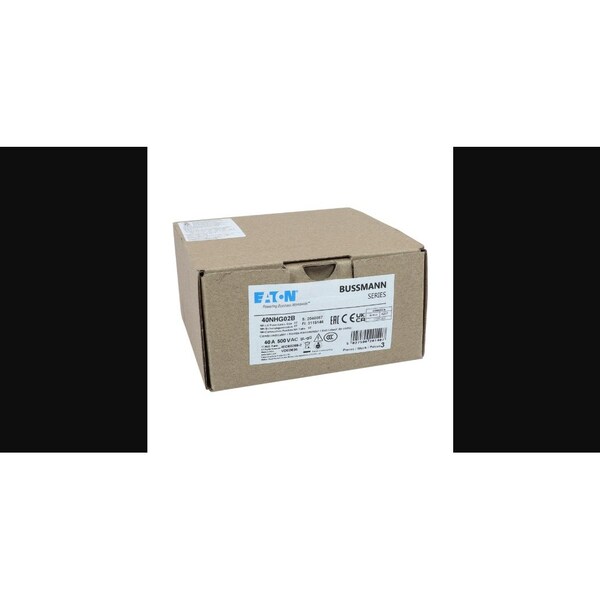

Inline Fuse, NHG Series, 40A, 500V AC, Square/Blade
| Item | Inline Fuse |
|---|---|
| Series | NHG |
| Amps | 40A |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Square, Blade |
| Visual Indication | Indicating |
| Interrupt Rating | 120kA |
| Body Material | Ceramic |
| Diameter | 40 mm |
| Length | 150 mm |
| Application | Industrial |
| Height | 63 MM |
| Width | 40 MM |
| Frequency Rating Maximum | 62 HZ |
| Amperage Rating | 40 A |
| Breaking Capacity | 120 KA |
| Frequency Rating Minimum | 45 HZ |
| Fuse shape | square body with knife blade contacts |
| Special Features | Live gripping lug |
| Type | fuse |
| Rated switching capacity | 120 A |
| Amperage Rating Numeric | 40 A |
| Connection | Blade end connection |
| Material Type | Ceramic body |
| Fuse Type | Square-body with knife blade contact |
| Package Quantity | 1 |
