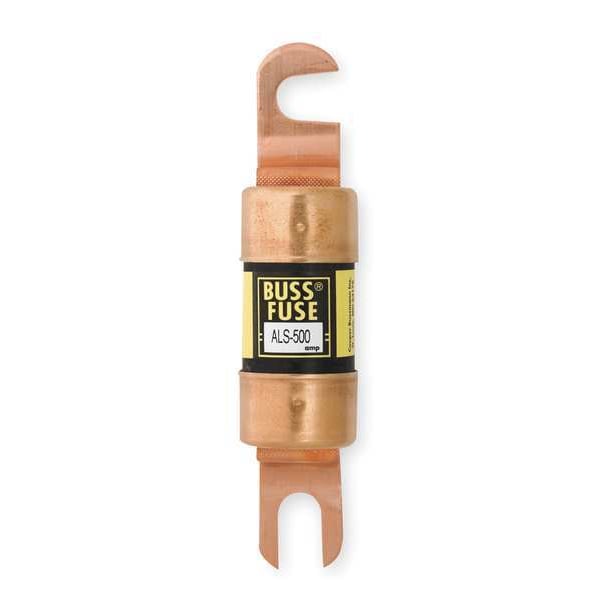

Limiter Fuse, ALS Series, 500A, Fast-Acting, Not Rated, Bolt-On
| Item | Limiter Fuse |
|---|---|
| Series | ALS |
| Amps | 500A |
| Speed | Fast-Acting |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 48V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 5kA at 48V DC |
| Body Material | Paper |
| Diameter | 1-1/16 in |
| Length | 3-3/4 in |
| Equivalent Brand and Series | Bussmann ALS, Mersen ALS |
| Equivalent Series | ALS |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Speed | Fast Acting |
| Indicating / Nonindicating | Nonindicating |
| Fuse Voltage Rating | 48VDC |
| Standards | UL Recognized, JFHR2, E56412 |
| Fuse Amps | 500 A |
| Element | Single |
| Width | Not Applicable |
| Weight | 0.192 lb |
| Package Quantity | 1 |
