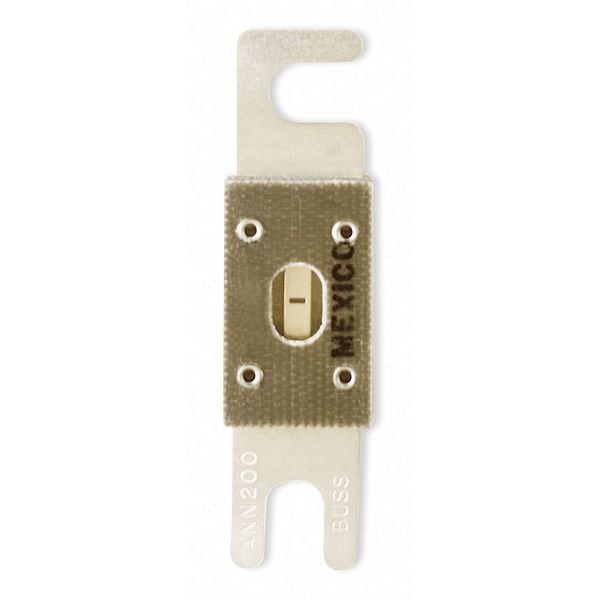

Limiter Fuse, ANN Series, 200A, Very Fast-Acting, 125V AC, Bolt-On
| Item | Limiter Fuse |
|---|---|
| Series | ANN |
| Amps | 200A |
| Speed | Very Fast-Acting |
| AC Voltage Rating | 125V AC |
| DC Voltage Rating | 80V DC |
| Body Style | Bolt-On |
| Visual Indication | Indicating |
| Interrupt Rating | 2.5kA at 125V AC, 2.7kA at 80V DC |
| Body Material | Melamine, Glass |
| Diameter | 7/8 in |
| Length | 3-3/16 in |
| Equivalent Brand and Series | Bussmann ANN, Littelfuse CNN, Mersen CNN |
| Equivalent Series | ANN, CNN |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Speed | Very Fast Acting |
| Fuse Amps | 200 A |
| Indicating / Nonindicating | Indicating |
| Standards | CE, CSA Certification Class 1422-30, UL Guide JFHR2 |
| Fuse Voltage Rating | 125VAC/80VDC |
| Element | Single |
| Width | Not Applicable |
| Compatible Fuse Block Series | 4164 |
| Weight | 0.27 lb |
| Mounting | Stud |
| Package Quantity | 1 |
