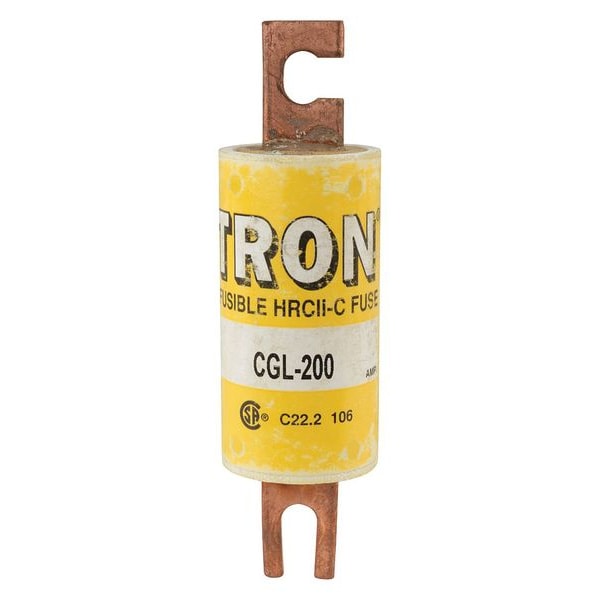

Low Voltage Fuse, CGL Series, 200A, Time-Delay, 600V AC, Bolt-On
| Item | Low Voltage Fuse |
|---|---|
| Series | CGL |
| Amps | 200A |
| Speed | Time-Delay |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 250V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 40kA at 250V DC |
| Body Material | Fiberglass |
| Diameter | 1-1/2 in |
| Length | 5-5/16 in |
| Fits Fuse Block Style | Non-Rejection |
| Standards | CE, CSA C22.2, No. 106 |
| Class | Not Rated |
| Element | Dual |
| Connection Type | Blade End x Blade End |
| Weight | 0.71 lb |
| Package Quantity | 1 |
