Medium-Voltage Fuse, CAVH Series, 0.50A, Time-Delay, 15,500V AC, Cylindrical, VT Link Type
| CAD Available | Yes |
|---|---|
| Item | Medium-Voltage Fuse |
| Series | CAVH |
| Amps | 0.50A |
| Speed | Time-Delay |
| AC Voltage Rating | 15,500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 80kA at 15,500V AC |
| Link Type | VT |
| Body Material | Fiberglass |

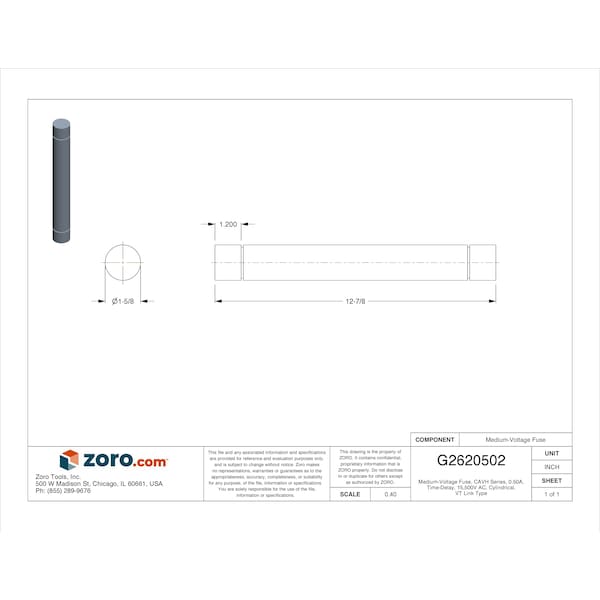

| Diameter | 1-5/8 in |
| Length | 12-7/8 in |
| Equivalent Brand and Series | Bussmann CAVH |
| Equivalent Series | CAVH |
| Fits Fuse Block Style | Non-Rejection |
| Class | E-Rated |
| Standards | BS, IEC 282-1 |
| Element | Single |
| Package Quantity | 1 |
