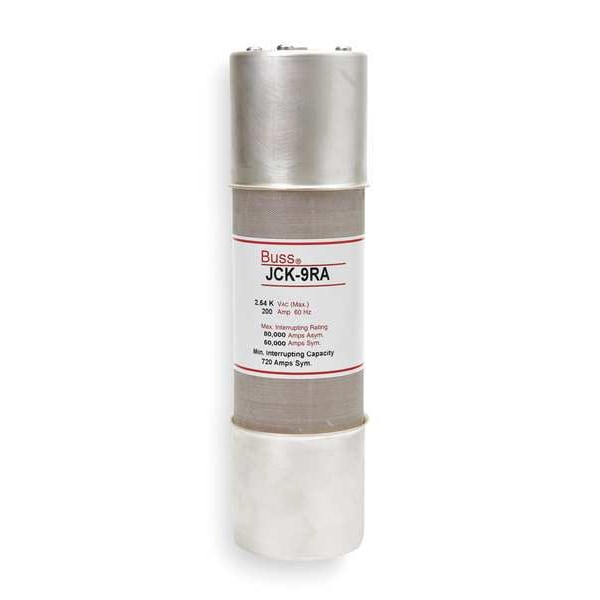

Medium-Voltage Fuse, JCK Series, 200A, Time-Delay, 2540V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | JCK |
| Amps | 200A |
| Speed | Time-Delay |
| AC Voltage Rating | 2540V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 50kA at 2450V AC, 80kA at 2450V AC |
| Body Material | Melamine |
| Diameter | 3 in |
| Length | 11-1/4 in |
| Equivalent Brand and Series | Bussmann JCK, Mersen A240R |
| Equivalent Series | A240R, JCK |
| Fits Fuse Block Style | Non-Rejection |
| Class | R-Rated |
| Element | Dual |
| Standards | UL Recognized (Guide MSSS2, File E96676) |
| Package Quantity | 1 |
