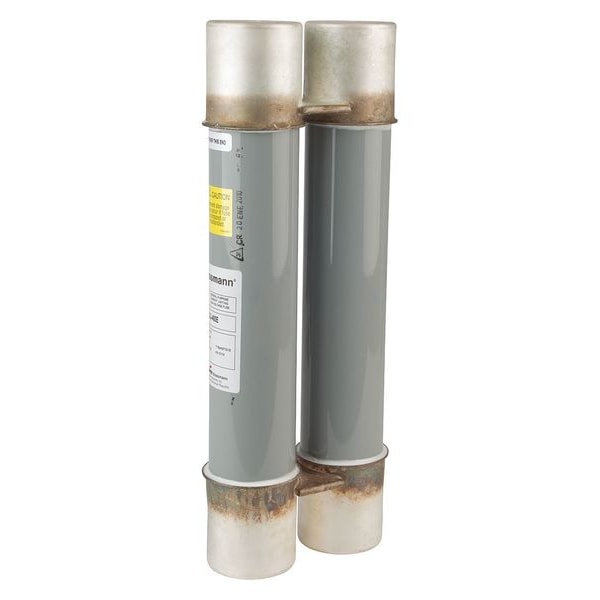

Medium-Voltage Fuse, JCU Series, 400A, Time-Delay, 5500V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | JCU |
| Amps | 400A |
| Speed | Time-Delay |
| AC Voltage Rating | 5500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA at 5500V AC, 63kA at 5500V AC |
| Body Material | Fiberglass |
| Diameter | 3 in |
| Length | 17-7/8 in |
| Equivalent Brand and Series | Bussmann JCU |
| Equivalent Series | JCU |
| Fits Fuse Block Style | Non-Rejection |
| Standards | ANSI |
| Class | E-Rated |
| Element | Dual |
| Package Quantity | 1 |
