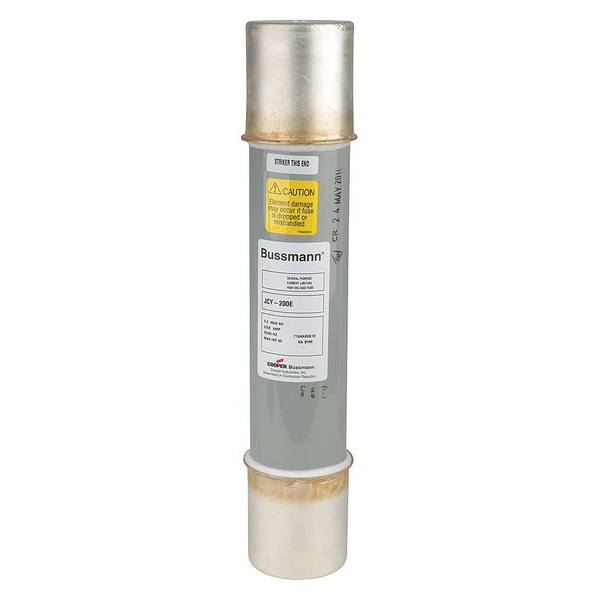

Medium-Voltage Fuse, JCY Series, 200A, Time-Delay, 5500V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | JCY |
| Amps | 200A |
| Speed | Time-Delay |
| AC Voltage Rating | 5500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 40kA at 5500V AC, 60kA at 5500V AC |
| Body Material | Melamine |
| Diameter | 3 in |
| Length | 15-7/8 in |
| Equivalent Brand and Series | Bussmann JCY |
| Equivalent Series | JCY |
| Fits Fuse Block Style | Non-Rejection |
| Class | E-Rated |
| Element | Dual |
| Package Quantity | 1 |
