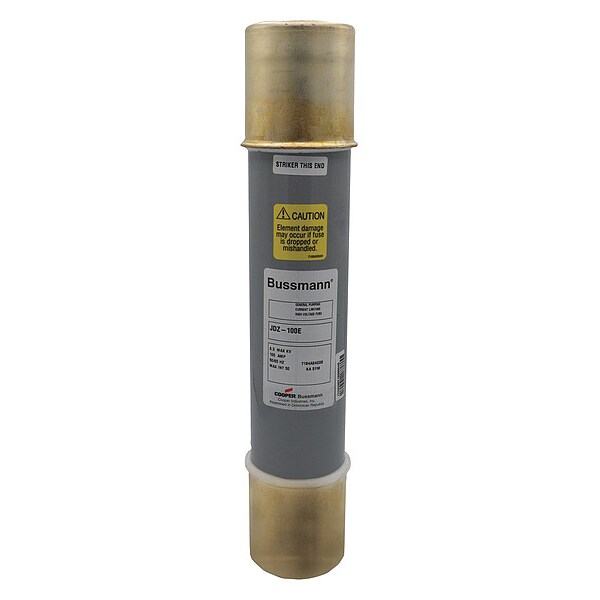

Medium-Voltage Fuse, JDZ Series, 100A, Time-Delay, 8300V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | JDZ |
| Amps | 100A |
| Speed | Time-Delay |
| AC Voltage Rating | 8300V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 50kA at 8300V AC, 80kA at 8300V AC |
| Body Material | Melamine |
| Diameter | 3 in |
| Length | 15-7/8 in |
| Equivalent Brand and Series | Bussmann JDZ |
| Equivalent Series | JDZ |
| Fits Fuse Block Style | Non-Rejection |
| Standards | ANSI |
| Element | Dual |
| Class | E-Rated |
| Package Quantity | 1 |
