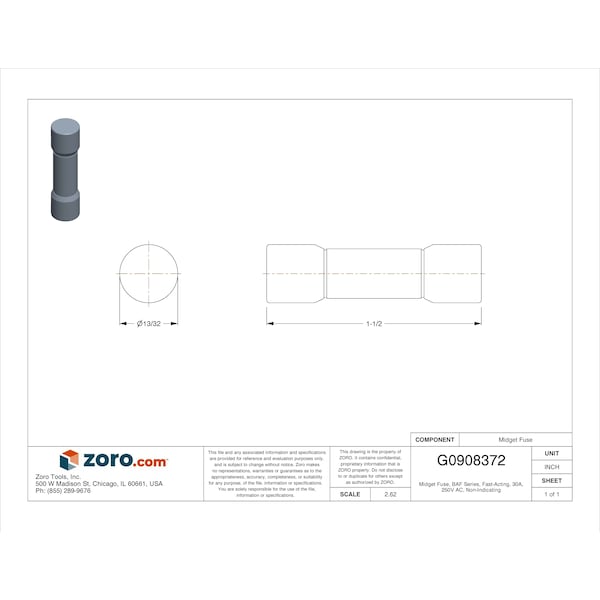

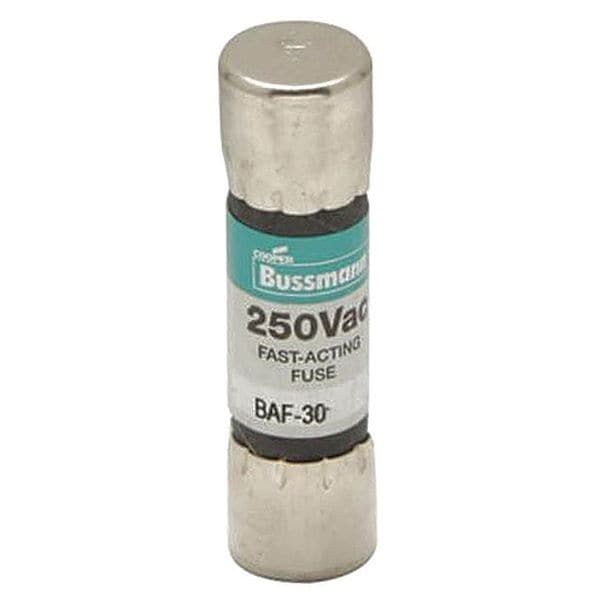

Midget Fuse, BAF Series, Fast-Acting, 30A, 250V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Series | BAF |
| Speed | Fast-Acting |
| Amps | 30A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V AC, 200A at 250V AC |
| Body Style | Cylindrical |
| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Body Material | Fiberglass |
| Equivalent Brand and Series | Bussmann BAF, Littelfuse BLF, Mersen OTM |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | BMM, CHM, C2617, C5268, HEB, HPG, HPS, BM, HEX |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Rejection / Nonrejection | Nonrejection |
| Fuse Holder Code | D |
| Element | Single |
| In Line Fuseholder | D |
| Standards | CE, CSA, UL Listed |
| Equivalent Series | BAF, BLF, OTM |
| Weight | 0.25 lb |
| Package Quantity | 1 |
