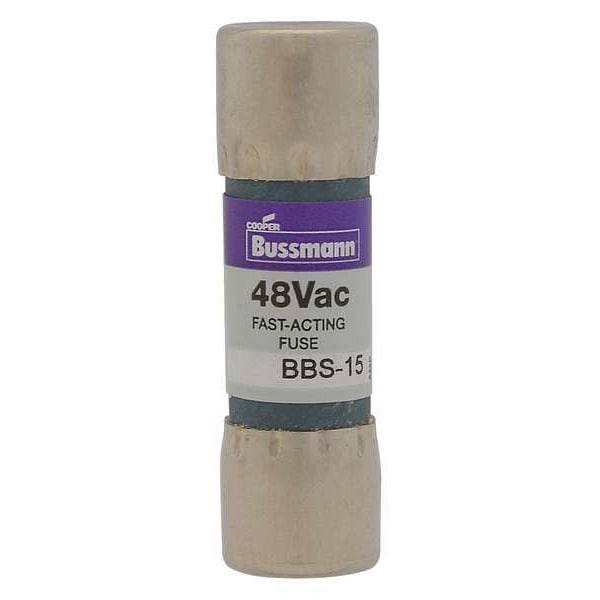

Midget Fuse, BBS Series, Fast-Acting, 15A, 48V AC, Non-Indicating, 10kA at 48V AC
| Series | BBS |
|---|---|
| Speed | Fast-Acting |
| Amps | 15A |
| AC Voltage Rating | 48V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 48V AC |
| Body Style | Cylindrical |
| Diameter | 13/32 in |
| Length | 1-3/8 in |
| Body Material | Fiberglass |
| Equivalent Brand and Series | Bussmann BBS, Littelfuse BLS, Mersen SBS |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | BMM, CHM |
| DC Voltage Rating | Not Rated |
| Item | Midget Fuse |
| Rejection / Nonrejection | Nonrejection |
| Element | Single |
| Equivalent Series | BBS, BLS, SBS |
| Weight | 0.12 lb |
| Standards | CE, CSA, UL Listed |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| In Line Fuseholder | D |
| Fuse Holder Code | D |
| Package Quantity | 1 |
